What Is Smart Garage Door Technology and How Does It Work?
Understanding how smart garage door technology works starts with one simple idea: your garage door opener connects to the internet, and you control it from your phone — from anywhere in the world.

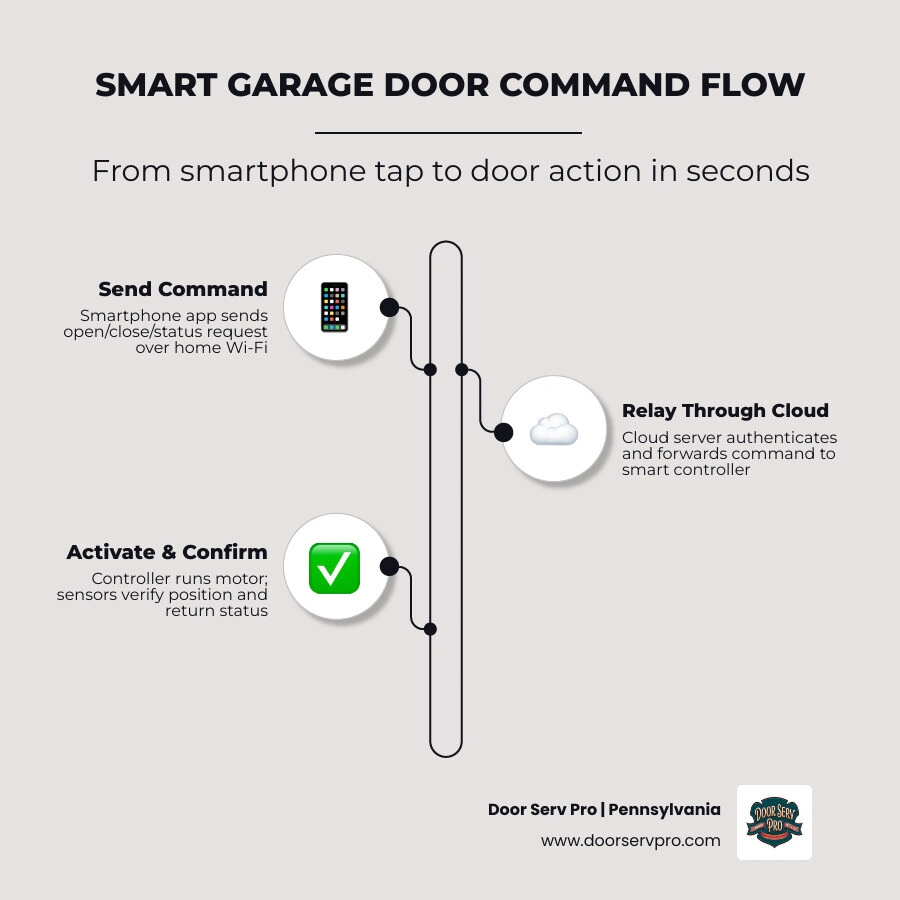

Here's a quick breakdown of how the system works:
- You send a command from your smartphone app (open, close, or check status).
- The app sends a signal to a cloud server over your home Wi-Fi network.
- The cloud relays the command to the smart controller mounted near your garage door opener.
- The controller activates the motor, opening or closing the door.
- Sensors confirm the door position and send a status update back to your app.
That's the full loop — from your phone to the cloud to the door and back again — usually in just a few seconds.
Sound familiar? You're halfway to work and that nagging thought hits: Did I close the garage door? With a traditional opener, there's nothing you can do but turn around. With a smart system, you pull out your phone, check the status, and close it with one tap. It's one of those upgrades that sounds simple — and it is — but it changes how you interact with your home every single day.
Smart garage door technology has come a long way. Today's systems do far more than just open and close remotely. They send real-time alerts, integrate with voice assistants, work with home automation platforms, and include serious security features that traditional openers simply can't match. And in many cases, you don't even need to replace your existing opener to get started.
In this guide, we'll walk through every layer of how these systems work — from the Wi-Fi connection and sensors to encryption, battery backup, and smart home integration — so you can make a confident, informed decision about upgrading your home.
The Core Mechanics: How Smart Garage Door Technology Works
At its heart, smart garage technology is a multi-layered "stack" that combines mechanical power with digital communication. In our 30+ years of serving Pennsylvania homeowners, we’ve seen the evolution from simple radio-frequency clickers to these sophisticated Wi-Fi systems.
The technology works across three primary functional layers:
- The Mechanical Layer: This is the motor, rail, and drive system (belt, chain, or screw) that does the heavy lifting.
- The Communication Layer: This involves the Wi-Fi chip inside the controller. Most systems use the 2.4GHz frequency because it has a longer range than 5GHz, which is essential for penetrating the thick walls of a garage.
- The Application Layer: This is the smartphone app where you set schedules, manage guest access, and view your activity log.
When you interact with your door, the system uses a cloud server relay. This means your phone doesn't talk directly to the garage door; instead, they both talk to a secure server in the cloud. This is why you can close your door while vacationing at the shore or sitting in your office in Chambersburg.
The Role of Smart Technology in Modern Garage Door Opener Installation has become central to modern home convenience. To better understand the leap in tech, look at the differences below:
| Feature | Traditional RF Opener | Modern Smart Wi-Fi System |
|---|---|---|
| Control Range | Driveway/Line of sight | Worldwide (anywhere with internet) |
| Feedback | Visual only (you must see it move) | Real-time app notifications |
| Security | Simple rolling codes | AES Encryption + Two-Factor Authentication |
| Automation | None | Scheduling, Geofencing, and Voice Control |
| Access Sharing | Physical remotes or keypads | Digital "keys" sent via smartphone |
Essential Components of a Connected Garage System
A smart garage isn't just a motor; it’s an ecosystem of devices working in harmony. If one piece of the puzzle is missing, the "smart" functionality breaks down.
The main components include:
- The Smart Controller: The "brain" of the operation. It houses the processor and the Wi-Fi hardware.
- The Mobile App: Your interface for monitoring and control.
- Position Sensors: These tell the system if the door is actually open or closed.
- Optical Safety Beams: Essential for safety, these prevent the door from closing if an object is in the way.
As we discuss in our guide on Embracing the Future with Smart Garage Door Service Solutions, these components must be professionally aligned to ensure the system remains reliable over its 10–15 year lifespan.
Understanding how smart garage door technology works with sensors
Sensors are the unsung heroes of the smart garage. Without them, your app would just be guessing.
- Tilt Sensors: These are typically used in retrofit kits. They are mounted to the top panel of the garage door. When the door is vertical, the sensor reports "closed." When the door moves to a horizontal position on the tracks, the sensor reports "open."
- Proximity and Laser Sensors: Some high-end integrated systems use built-in sensors that track the exact position of the trolley.
- Obstruction Sensing: All modern systems must meet UL 325 standards. If the optical beams are broken or the motor detects unexpected resistance, the smart system will not only stop the door but send an immediate alert to your phone.
How smart garage door technology works with home automation platforms
One of the biggest perks of smart tech is making your garage part of your broader "Smart Home." According to recent statistics, 70% of smart garage door owners say remote monitoring is an essential feature, but automation takes it a step further.
- Voice Assistants: You can link your door to Alexa, Google Home, or Siri. This allows for hands-free commands like, "Hey Google, is the garage door closed?"
- Geofencing: You can set a digital perimeter (usually a 200-foot radius) around your home. When your smartphone enters this zone, the garage door can automatically open for you. No more fumbling for a remote while turning into the driveway.
- Automated Routines: You can create "Goodnight" routines that automatically close the garage door, lock your smart deadbolts, and dim the lights at a specific time each night.
- Platform Integration: For the tech-savvy, platforms like Home Assistant allow for deep customization, such as turning on the mudroom lights only if the garage door opens after sunset.
Security and Resilience in Modern Smart Openers
We often tell our neighbors in Waynesboro and Greencastle that the garage is the "largest front door" to your home. Because it's a common entry point for unauthorized access, security is paramount.
Revolutionizing Access: The Future of Garage Door Opener Installation is largely about moving away from the "fixed code" remotes of the past, which were easily intercepted by hackers.
Protecting against unauthorized access
Modern smart systems use several layers of digital defense:
- Rolling Code Technology: Every time you use your opener, it generates a new encrypted code from billions of possibilities. This prevents "replay attacks," where a thief records your remote signal to use later.
- AES Encryption: This is the same grade of encryption used by banks. It protects the data traveling between your phone, the cloud, and your garage.
- Two-Factor Authentication (2FA): Even if someone steals your app password, they can't access your garage without a secondary code sent to your phone.
- Activity Logs: Your app keeps a permanent record of every time the door was moved and by whom. If a door opens at 2:00 AM, you’ll know instantly.
- Temporary Guest Codes: Instead of giving a spare key to a dog walker or a delivery driver, you can send them a digital key that only works during specific hours.
Managing power outages and connectivity loss
What happens if the power goes out in Chambersburg during a summer storm?
- Battery Backup: Most high-quality smart openers include a battery backup system. These typically provide 20 to 50 open/close cycles when the main power is out, ensuring you aren't locked out of your own home.
- The Wi-Fi Factor: If your home Wi-Fi is down, the smart features (app control) will stop working, but your physical remotes and wall buttons will still function perfectly.
- Manual Release: Every system still includes the classic red manual release cord, allowing you to disconnect the carriage and lift the door by hand if necessary.
Upgrading and Maintaining Your Smart System
You don't always need to buy a brand-new motor to get smart features. If your current opener was manufactured after 1993 and has safety sensors (the "eyes" at the bottom of the tracks), it is likely compatible with a retrofit smart hub.
Enhancing Home Value with a Modern Garage Door Opener is a smart move for Pennsylvania homeowners looking to modernize their property. A smart system is a highly visible, high-impact upgrade for potential buyers.
Installation and troubleshooting steps
While some homeowners attempt a DIY setup, professional installation ensures the Wi-Fi signal is strong enough to reach the garage and that all safety protocols are met.
- Wi-Fi Audit: We check the signal strength in your garage. If it's weak, we may recommend a Wi-Fi extender or a mesh node to prevent "offline" errors.
- Mounting the Controller: The hub is mounted to the ceiling or wall and wired to the opener’s command nodes.
- Sensor Calibration: We ensure tilt or proximity sensors are perfectly aligned to avoid false "door open" alerts.
- App Pairing: We walk you through the process of connecting the hardware to your home network and setting up your security preferences.
Long-term maintenance for smart hardware
Smart technology requires a slightly different maintenance approach than traditional hardware. In addition to the mechanical needs discussed in our guide on How to Choose a Reliable Company for Commercial Roll-Up Door Repair, you should consider the following:
- Firmware Updates: Just like your phone, your garage door opener needs regular software updates to stay secure and fix bugs.
- Battery Health Checks: If you have a battery backup, it should be tested annually and typically replaced every 2–3 years.
- Signal Strength Audits: If you add new appliances or electronics to your home, they can sometimes interfere with the 2.4GHz signal.
- Mechanical Lubrication: A smart motor that has to struggle against a rusty track or a broken spring will wear out its electronic components faster. Regular lubrication of springs, rollers, and hinges is essential.
Frequently Asked Questions about Smart Garage Tech
Can I convert my existing garage door opener into a smart system?
Yes! Most openers manufactured after 1993 that are equipped with safety sensors can be upgraded using a retrofit smart hub. These devices act as a bridge between your old motor and your Wi-Fi network. However, if your opener is older than 1993, it lacks the modern safety features required for remote operation, and we recommend a full replacement for your safety.
What happens if my home Wi-Fi goes down?
If your Wi-Fi goes out, you lose the ability to control the door via your smartphone app. However, your standard garage door remotes, the exterior keypad, and the interior wall button will continue to work normally. Once your internet service is restored, most smart controllers will automatically reconnect to the network.
Are smart garage door openers more secure than traditional ones?
Absolutely. Traditional openers often used fixed codes or simpler rolling codes that were easier to bypass. Smart openers use advanced AES encryption, two-factor authentication, and provide real-time alerts. If someone tries to force your door open, you’ll receive a notification on your phone immediately—something a traditional opener could never do.
Conclusion
Smart garage door technology has transformed the "humble garage" into a high-tech security gate. By understanding how smart garage door technology works, you can take full advantage of the convenience, safety, and peace of mind it offers. Whether you are looking to retrofit your current system or install a brand-new, integrated smart opener, the benefits for your Pennsylvania home are clear.
At Door Serv Pro, we bring over 30 years of craftsmanship and family-owned reliability to every job. From Chambersburg to Waynesboro, we are dedicated to helping our community embrace the future of home access. We offer 24/7 emergency service and expert guidance to ensure your garage is always working for you.
Contact us today for expert garage door opener programming and smart upgrades and experience the total peace of mind that comes with a truly connected home.
