Why the Torsion Spring vs Extension Spring Difference Matters for Your Garage Door
The torsion spring vs extension spring difference is something every homeowner should understand — because the type of spring on your garage door affects how safely, smoothly, and reliably it operates every single day.
Here's a quick breakdown:

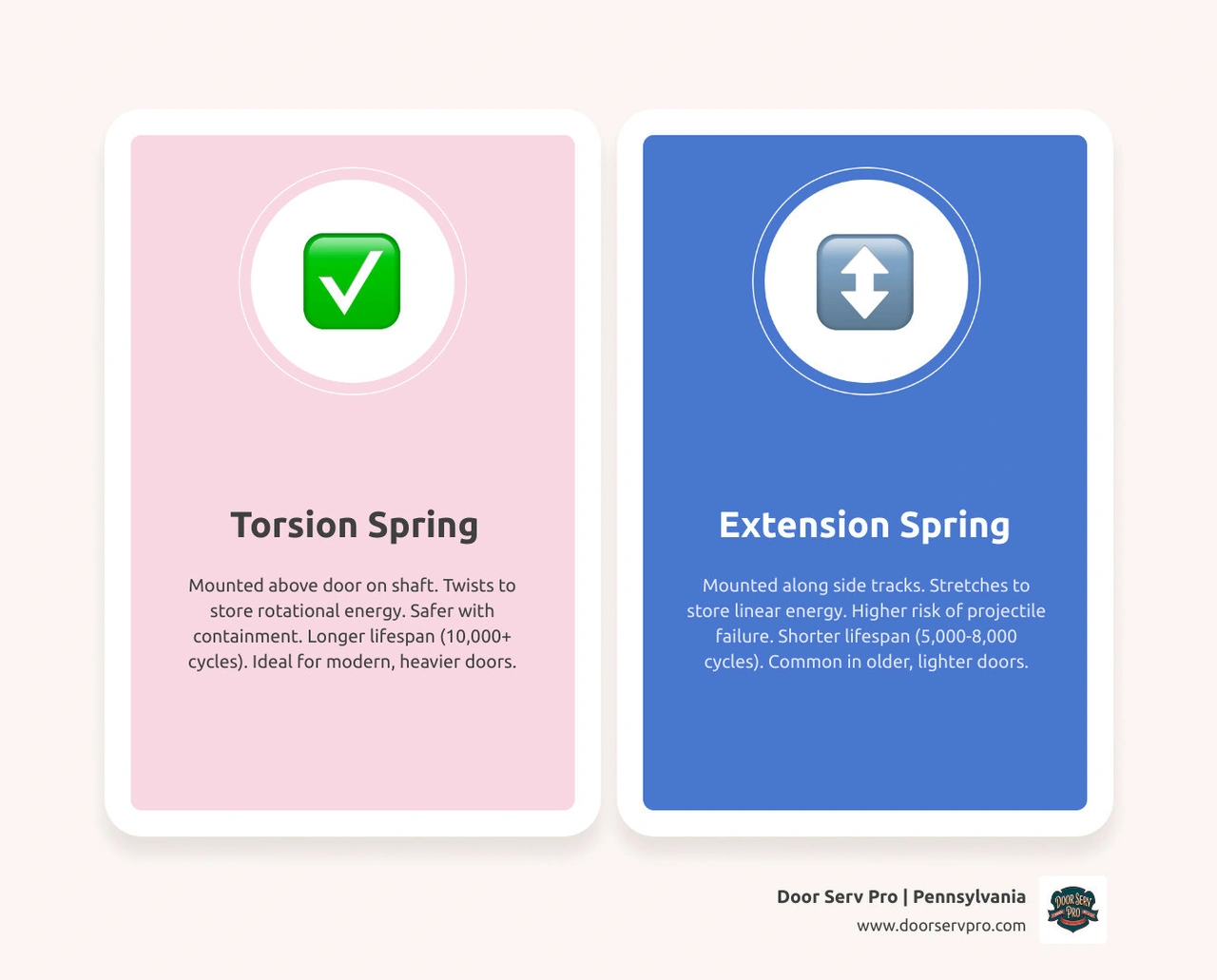

| Feature | Torsion Spring | Extension Spring |
|---|---|---|
| Location | Above the door, on a metal shaft | Along the sides, parallel to tracks |
| How it works | Twists to store rotational energy | Stretches to store linear energy |
| Number used | Typically one | Usually two (one per side) |
| Safety | Stays on shaft if it breaks | Can snap off and become a projectile |
| Lifespan | Longer — more cycles before failure | Shorter — stretching causes more wear |
| Cost | Slightly higher upfront | More affordable upfront |
| Best for | Most modern homes; heavier doors | Tight budgets; older or lighter doors |
Both spring types do the same essential job — counterbalancing your garage door's weight so it doesn't feel like dead weight when you open or close it. But how they do that job, and how safely they do it, is very different.
If you've ever heard a loud bang from your garage and found the door won't budge, there's a good chance a spring failed. Understanding which type you have — and why it matters — can help you make smarter decisions about repairs and replacements.
Torsion spring vs extension spring difference definitions:
The Fundamental Torsion Spring vs Extension Spring Difference
At its core, the torsion spring vs extension spring difference comes down to how they store and release energy. Think of your garage door as a giant weight that needs to be "neutralized" so your opener (or your back!) can lift it easily.
Torsion springs are helical springs that exert torque, or a rotary force. Imagine wringing out a wet towel; as you twist the towel, it wants to snap back to its original shape. That twisting motion is exactly how a torsion spring works. It is mounted on a metal shaft directly above the door opening. When the door closes, cables attached to the bottom corners pull on drums, which in turn wind the spring tighter, storing energy through rotation.
Extension springs, on the other hand, operate on linear tension. Think of these like a giant rubber band or a Slinky. They are mounted on the sides of the garage door tracks and stretch out as the door closes. The energy is stored in that long, physical stretch. When you open the door, the springs want to contract back to their natural state, pulling the door upward in the process.
While both systems act as a counterbalance, the way they handle that mechanical tension is vastly different. Torsion springs are generally considered a more modern and efficient method of energy management. If you want to dive deeper into the mechanics of the twisting system, check out Navigating Torsion: Your Complete Guide to Garage Door Spring Repair.
Comparing Design, Mounting, and Appearance
When you walk into your garage in Chambersburg or Waynesboro, you can tell which system you have just by looking at the hardware. The design and mounting points are the most obvious visual cues for identifying the torsion spring vs extension spring difference.
| Feature | Torsion Spring Design | Extension Spring Design |
|---|---|---|
| Mounting Point | Center of the header, above the door | Above the horizontal tracks on the sides |
| Support | Mounted on a solid metal shaft | Attached to rear track hangers |
| End Fittings | Winding cones and stationary cones | Loops or hooks at each end |
| Drive System | Cable drums at the ends of the shaft | Pulley system with safety cables |
| Appearance | Thick, tightly coiled single or double unit | Long, thin springs that stretch visibly |
Torsion springs are supported by a metal shaft that runs through the center of the coils. This shaft keeps the spring stable and ensures that if it breaks, the pieces stay put. Extension springs are more "free-floating," attached to the track hangers at one end and a pulley system at the other. Because extension springs move so much more during operation, they often require safety cables to prevent them from flying across the garage if they snap.
Identifying the torsion spring vs extension spring difference by sight
Identifying your spring type is simple once you know where to look.
- Look at the Header: If you see one or two thick springs wrapped around a bar directly above the top of your garage door, you have a torsion system. You will also notice "cones" at the ends of the springs used to secure them to the shaft.
- Look at the Side Tracks: If you see long, thin springs running parallel to the ceiling along the upper tracks on the left and right sides, you have extension springs. These will look like they are stretching out as the door moves down.
- Count the Components: Torsion systems usually consist of one or two springs in the center. Extension systems almost always come in pairs—one for each side of the door.
Operational mechanics in a garage door system
The way these springs distribute weight affects how your door feels when it moves. Torsion springs provide a very balanced, smooth operation because the force is distributed evenly across the metal shaft to the cable drums. This reduces the strain on your garage door opener and ensures the door stays level.
Extension springs can be a bit more "jerky." Because there are two separate springs, if one has slightly more tension than the other, the door might lift unevenly or squeak as the pulleys work to keep things aligned. Furthermore, extension springs require "initial tension" to be overcome before they even start to move the door, which can lead to more wear and tear on the cables over time. To ensure your system is running at its peak, regular Garage Door Spring Service is essential.
Safety and Durability: Why Torsion Often Wins
When we talk to our neighbors in Greencastle and across Pennsylvania, safety is always the top priority. This is where the torsion spring vs extension spring difference becomes most critical.
Garage door springs are under an immense amount of tension—enough to lift a 200-pound door. If a spring fails, that energy has to go somewhere.
The Projectile Risk: When an extension spring breaks, it can snap like a whip. Without a safety cable running through the center, the spring can fly off its mount and become a dangerous projectile, capable of denting a car or causing severe injury.
The Containment Advantage: Torsion springs are much safer by design. Because they are wrapped around a solid metal shaft, if the spring snaps, it stays right where it is. You’ll hear a loud "bang," but the spring won't go flying across the room. This containment makes torsion springs the preferred choice for safety-conscious homeowners.
In terms of durability, torsion springs also take the lead. They are typically rated for 10,000 to 20,000 cycles (one cycle is an open and a close). Extension springs are usually rated for only 5,000 to 10,000 cycles. Because extension springs physically stretch and contract, the metal fatigues faster than the twisting motion of a torsion spring.
If you're considering a DIY fix, we urge you to read our guide on the Hidden Dangers of DIY Garage Door Spring Repair: Safety Myths Debunked.
Safety considerations and the torsion spring vs extension spring difference
Beyond the risk of flying metal, there are other safety factors to consider:
- Sudden Snapping: Both springs can snap without warning, but a failing torsion spring usually results in the door simply refusing to open. A failing extension spring can cause the door to fall rapidly if the other spring can't handle the weight.
- Safety Cables: If you have extension springs, you must have safety cables installed. These cables run through the center of the spring and are anchored to the wall or track.
- Professional Calibration: Torsion springs require specialized tools called winding bars to adjust. Attempting to "tighten" these yourself is incredibly dangerous and is one of the Common Mistakes to Avoid with Garage Door Spring Repair.
Maintenance Tips for Long-Lasting Springs
Whether you have torsion or extension springs, a little TLC goes a long way in Pennsylvania's changing seasons. Rust is the enemy of spring steel, and friction leads to premature failure.
- Use the Right Lubricant: Apply a silicone-based garage door lubricant to the coils at least twice a year. This prevents the coils from rubbing against each other and keeps them from rusting. Avoid WD-40, as it is a degreaser, not a long-term lubricant.
- Perform a Balance Test: Every few months, pull the emergency release cord while the door is closed. Lift the door manually to the halfway point. If it stays in place, your springs are well-balanced. If it slams shut or shoots upward, your springs need professional adjustment.
- Listen for Unusual Noises: Squeaking, grinding, or popping sounds are early warning signs that your springs or pulleys are struggling.
- Visual Inspection: Look for gaps in the coils or signs of "flattening." If a torsion spring has a visible gap, it has already broken.
Frequently Asked Questions about Garage Door Springs
Which spring type has a longer lifespan?
Torsion springs generally have a much longer lifespan. Most standard torsion springs are manufactured to handle 10,000 cycles, but high-cycle versions can last up to 30,000. Extension springs, due to the stress of linear stretching, typically last about half as long as a torsion counterpart.
How can I tell if my garage door spring is failing?
Watch for these signs:
- Jerky Movement: The door moves up or down in "stutters."
- Loud Bangs: A broken spring sounds like a gunshot in your garage.
- Gaps in Coils: For torsion springs, a 2-inch gap means it's snapped.
- Heavy Door: If your opener is straining or you can't lift the door manually, the spring is no longer doing its job.
- Cables Hanging: If the spring breaks, the cables will often lose tension and fall off the drums.
Should I choose torsion or extension for a new installation in 2026?
In April 2026, the trend is overwhelmingly toward torsion springs. They offer better safety, a cleaner look, and fewer moving parts (like pulleys) that can fail. While extension springs are still used in garages with very low headroom or for those on a strict budget, torsion springs provide much better long-term value and peace of mind.
Conclusion
Understanding the torsion spring vs extension spring difference is the first step in maintaining a safe and functional home. While extension springs are a classic, budget-friendly option, torsion springs offer superior durability, smoother operation, and significantly better safety for your family and vehicles.
