The Real Difference Between Belt Drive and Chain Drive Garage Door Openers
The belt drive vs chain drive garage door opener comparison comes down to four things: noise, strength, maintenance, and cost. Here's a quick breakdown to help you decide:

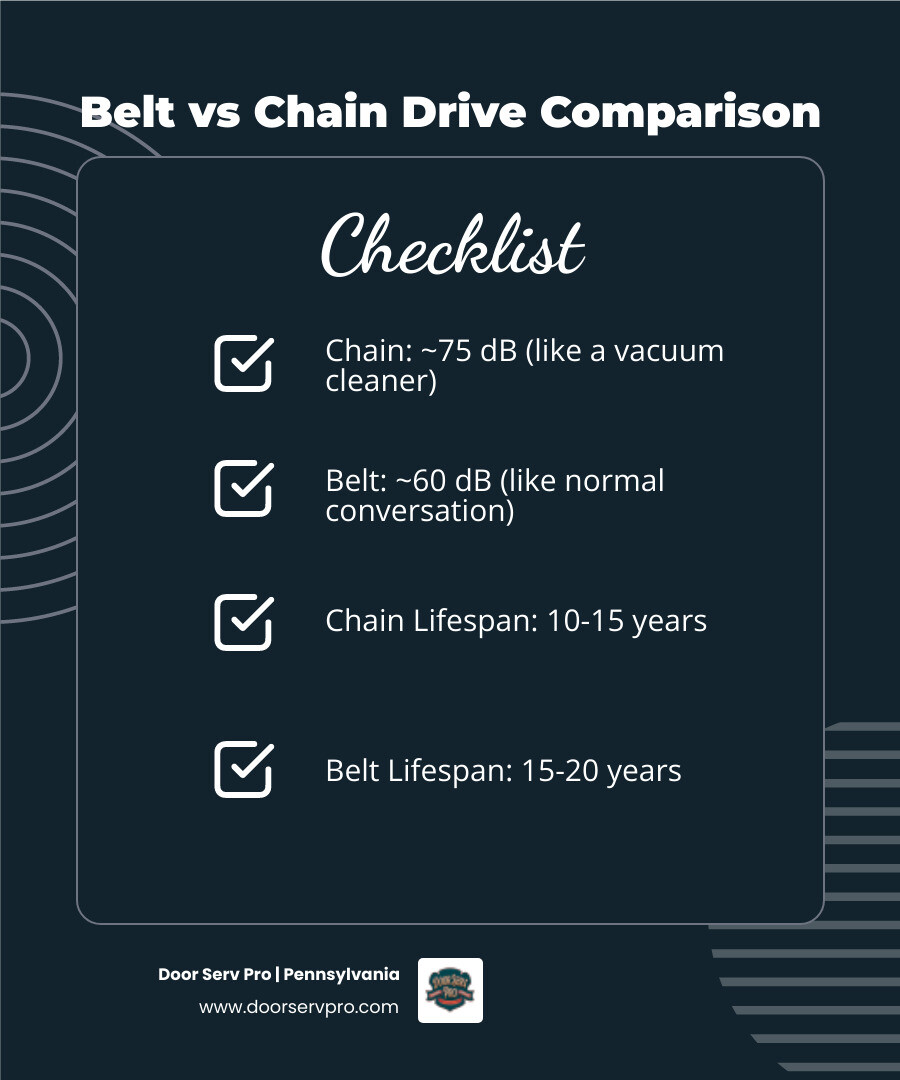

| Factor | Chain Drive | Belt Drive |
|---|---|---|
| Noise Level | ~75 dB (like a vacuum cleaner) | ~60 dB (like normal conversation) |
| Best For | Heavy or oversized doors | Attached garages, noise-sensitive spaces |
| Maintenance | Lubrication every 3-6 months | Minimal, no lubrication needed |
| Lifespan | 10-15 years average | 15-20 years average |
| Strength | Excellent for heavy doors | Good for standard residential doors |
If you have an attached garage in Pennsylvania — especially with a bedroom or living space nearby — a belt drive is usually the better fit. If you have a heavy solid wood or oversized door, or a detached garage where noise isn't a concern, a chain drive is a proven, reliable choice.
Every time you pull into your driveway after a long day, your garage door opener is working in the background. Most homeowners don't think about it — until it starts rattling the walls at 6 a.m. or struggling to lift a heavy door in the middle of a cold Chambersburg winter.
Choosing the right drive system matters more than most people realize. Chain drives have been the industry standard for decades, built tough and priced to fit most budgets. Belt drives have caught up fast — modern versions use steel- and fiberglass-reinforced rubber belts that are both strong and surprisingly quiet.
The good news? Neither choice is wrong. It just depends on your garage setup, your door weight, and how much noise you can live with.
How Chain and Belt Drive Systems Operate
Understanding how these machines work helps demystify why one might be louder or stronger than the other. Both systems use an electric motor to move a trolley along a rail, which in turn pulls the door up or pushes it down. The "drive" refers to the medium used to move that trolley.
The Mechanics of Chain Drives
A chain drive opener functions very similarly to a bicycle. A metal chain runs around a sprocket on the motor and connects to the trolley. As the motor spins the sprocket, the chain pulls the trolley along the rail. Because it involves metal-on-metal contact, this system is inherently durable but also produces a signature "clinking" or rattling sound. If you find your system is vibrating excessively, you may need to resolve chain drive opener issues by checking the tension or lubricating the links.
The Mechanics of Belt Drives
Belt drive openers replace the metal chain with a reinforced belt. These belts are typically made of high-quality rubber, polyurethane, or fiberglass, and many modern versions are further reinforced with internal steel wires for added "muscle." Instead of the clatter of metal links, the belt glides smoothly over the sprocket. This results in a much more fluid motion with significantly less friction. The electric motor doesn't have to work as hard to overcome the resistance of the drive itself, which often leads to a smoother start and stop.
Belt drive vs chain drive garage door opener comparison: Performance and Durability
When we look at a belt drive vs chain drive garage door opener comparison, performance isn't just about whether the door opens—it's about how it feels and sounds while doing it.
| Performance Metric | Chain Drive | Belt Drive |
|---|---|---|
| Noise Level | 70-75 dB (Metallic rattle) | 50-60 dB (Low hum) |
| Vibration | High (transfers to structure) | Very Low (smooth glide) |
| Speed | Standard | Slightly Faster |
| Typical Lifespan | 10-15 Years | 15-20 Years |
Noise and Vibration
Noise is the most cited reason for upgrading. Chain drives produce a sound comparable to a vacuum cleaner, often hovering around 75 decibels. This noise is caused by the chain vibrating against the rail. In contrast, belt drives operate at roughly 60 decibels, which is similar to a normal conversation or a refrigerator hum. Furthermore, how garage door opener repair fixes noisy and unresponsive doors often involves addressing the vibration that travels through the garage ceiling and into the home's framing.
Lifting Capacity and Speed
For decades, the chain drive was the undisputed king of heavy lifting. If you have an oversized custom door or a solid wood carriage door, the no-slip metal links of a chain drive provide peace of mind. However, modern steel-reinforced belts have narrowed this gap significantly. Most standard residential doors weigh between 150 and 250 pounds, which both systems handle with ease. In terms of speed, belt drives often open the door a few seconds faster because the reduced friction allows the motor to reach peak velocity more quickly.
Choosing the Best Option for Attached Garages
In Pennsylvania towns like Waynesboro or Greencastle, many homes feature attached garages with bedrooms located directly above or adjacent to the garage. In these layouts, the drive type becomes a quality-of-life issue. A chain drive's vibration can echo through the floorboards, waking up sleeping infants or disturbing a home office.
If your garage is detached—perhaps a separate workshop or a shed—the noise likely doesn't matter. In those cases, the reliability and lower initial investment of a chain drive make perfect sense. But for an attached garage, the "silent" operation of a belt drive is almost always worth the investment. If you aren't sure which setup your home requires, it is wise to know when to consult a professional for garage door opener repair or installation to assess your home's acoustics.
Long-Term Maintenance for Your Drive System
Every mechanical system needs a little love to stay in top shape. The maintenance requirements between these two types are quite different.
- Chain Drive Maintenance: Because it is metal, a chain requires semi-annual lubrication to prevent rust and ensure smooth movement. Without this, the metal-on-metal friction will eventually wear down the sprocket. You also need to check the tension yearly, as chains can develop "slack" over time.
- Belt Drive Maintenance: These are often marketed as "maintenance-free" regarding the drive itself. You don't need to lubricate the belt (in fact, you shouldn't, as oil can degrade the rubber). While belts can technically stretch over a decade of use, modern fiberglass reinforcements make this rare.
For both types, regular garage door opener repair and inspections of the safety sensors and springs are essential to reach that 15-20 year lifespan goal.
Impact of Pennsylvania Climate on Drive Selection
Living in Pennsylvania means dealing with humid summers in Chambersburg and freezing winters that can drop well below zero. These temperature swings affect garage door components.
The Cold Factor:Extreme cold causes metal to contract. For a chain drive, this can occasionally lead to a tighter chain that requires a minor adjustment. On the flip side, very old rubber belts could potentially stiffen in sub-zero temperatures, though modern polyurethane belts used in 2026 are rated to perform perfectly down to -20°F.
The Humidity Factor:Humidity is the enemy of metal. In damp environments, an unlubricated chain is susceptible to surface rust. This rust doesn't just look bad; it creates more friction and noise. Belt drives are naturally moisture-resistant and won't rust, making them a "set it and forget it" option for damp PA springs. If your opener starts acting up after a big storm, it might be related to garage door opener repairs common electrical issues and fixes rather than the drive itself.
Frequently Asked Questions about Garage Door Drives
Which drive type is better for heavy solid wood doors?
While modern belts are strong, the chain drive remains the "workhorse" for the heaviest applications. If you have a solid wood carriage-style door or a triple-layer insulated steel door that exceeds 350 pounds, the no-slip security of a metal chain is often the safer choice. The metal links won't stretch or slip under the intense initial tension required to lift a heavy door from a dead stop.
How long do modern garage door belts actually last?
You can expect a high-quality belt drive to last between 15 and 20 years. Because they have fewer moving parts and less vibration than chain drives, the motor and internal gears often stay in better condition for longer. While a chain might technically "last" longer because metal is harder to break, the noise and maintenance requirements of an old chain drive often lead homeowners to replace them sooner.
Can I upgrade from a chain drive to a belt drive system?
Absolutely. In most cases, the mounting points on your ceiling and the header above your door are compatible with both systems. However, you cannot simply swap a chain for a belt on the same rail; you will need a new motor head and rail assembly. This is an excellent time to consider garage door opener replacement to gain modern features like Wi-Fi connectivity, battery backups, and enhanced security encryption.
Conclusion
Choosing between a belt and a chain drive doesn't have to be a headache. If you want the quietest experience possible for your attached Pennsylvania home, go with a belt. If you have a detached garage or a massive, heavy door and want a rugged, time-tested solution, the chain drive is your best friend.
